Premium IR Series - Ceramic Film
This IR Series Film acts as a shield and protects the glass from rays and heat by providing 99% IR rejection and optical clarity.
| Product Name | IR-05 | IR-35 | IR-50 | IR-70 (Blue , Black & Green) |
IR-08 (Sputer) |
|---|---|---|---|---|---|
| Thickness | 2 mil | 2 mil | 2 mil | 2 mil | 2 mil |
| IR Rej: Infrared Rejection | 99% | 99% | 99% | 99% | 94% |
| UV Rej: Ultraviolet Rejection | 99% | 99% | 99% | 99% | 99% |
| Glare Reduction | 89% | 66% | 32% | 21% | 92% |
| Film Specification | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m | 1.52*30m |
| VLT: Visible Light Transmission | 5% | 35% | 50% | 70% | 8% |
| VLR: Visible Light Reflection | 8% | 8% | 8% | 8% | 8% |
| TSER: Total Solar Energy Rejected | 82% | 68% | 62% | 51% | 78% |
| SR Hardness | >2H | >2H | >2H | >2H | >2H |
FEATURES
Superb Durability. Resistance To Salt-Content Environment
UV Rejection 100% Dye Free And 100% Metal-Free
Natural Tone With Low Reflectivity
High Total Solar Energy Rejection
High Ultra-Violet Rejection >99%
Scratch Resistant Hard-Coat
IR - Sputter Tint Film
Made using a multi-layer magnetron sputtering process technology, sputter window tint film, also referred to as magnetron sputtering metal film, offers exceptional long-lasting reflection and heat insulation capabilities. It used to be commonly used in car tint films because of its various qualities, including high definition, high stability, high heat insulation, low internal reflection, pure color, never fades, and long lifespan.
| IR 08 SUTTER | |
|---|---|
| Thickness | 2 mil |
| IR Rej: Infrared Rejection | 94% |
| UV Rej: Ultraviolet Rejection | 99% |
| Glare Reduction | 92% |
| Film Specifiction | 1.52*30m |
| VLT: Visible Light Transmission | 8% |
| VLR: Visible Light Reflection | 8% |
| TSER: Total Solar Energy Rejected | 78% |
| SR Hardness | >2H |
PROTECT SKIN
BY UV RAYS
SECURITY &
ANTI-EXPLOSION
PRIVACY
PROTECTION
HEAT
INSULATION

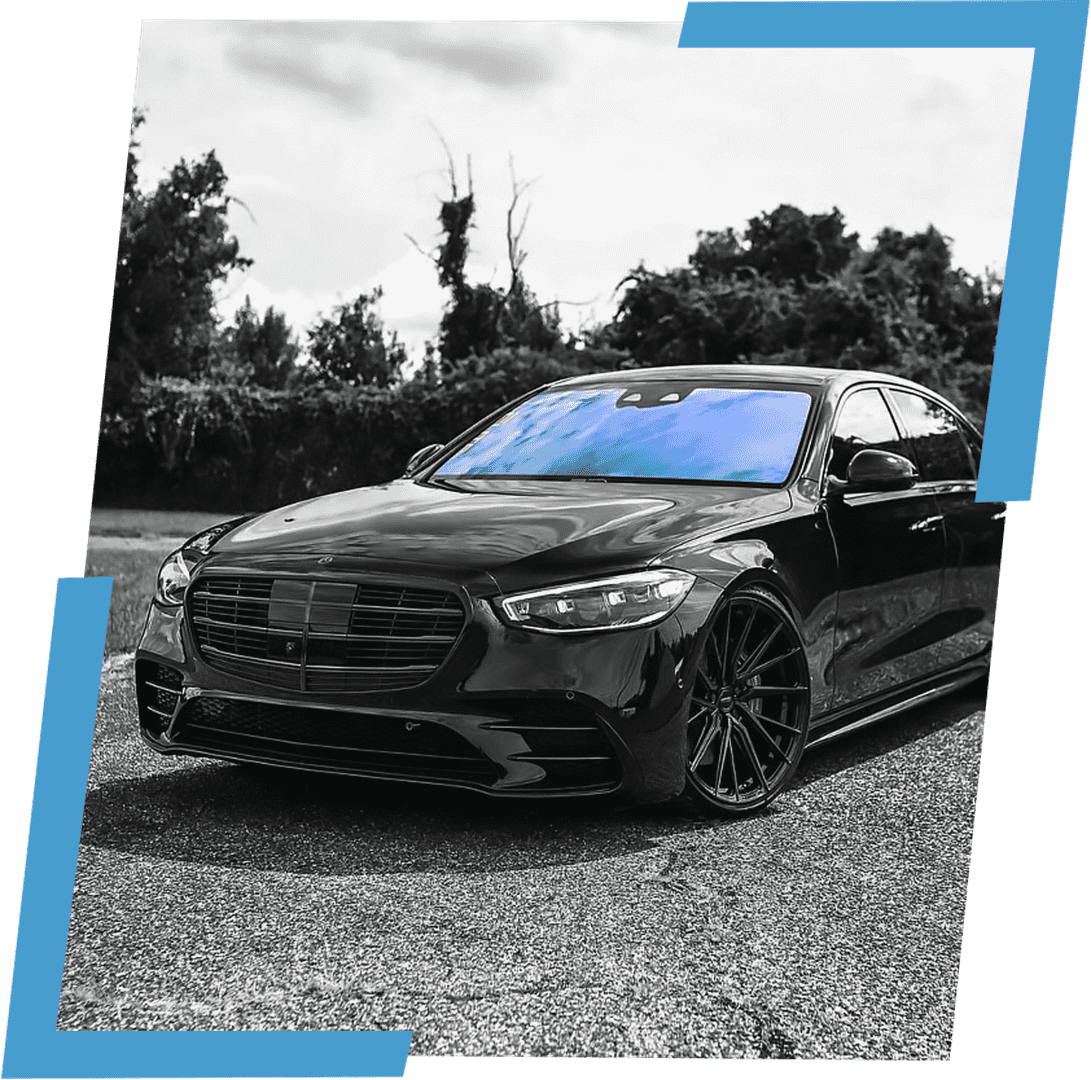

Chameleon Automotive Glass Film
The interior glass surfaces of automobiles are the only surfaces for which Chameleon Automotive Glass Film is designed. They create a dynamic effect, and the color varies when viewed from different directions. The colours reflected may differ from those transmitted. That's why it's termed the chameleon effect.
This film is made using modern and sophisticated nanotechnology. As a Metal-Free Film with excellent installation features, it offers incredibly impressive solar protection and color durability.
| Chameleon Window Film (CWF) | |
|---|---|
| Visible Light Transmission | 80% |
| Visible Light Reflection | 17% |
| Ultraviolet Rejection | 99% |
| Ifrared Rejection | 90% |
| SR Hardness | >2H |
| Thickness | 2.5mil |
| Warranty (in years) | 6% |
| SHGC | 40% |
FEATURES
Changing Colours With Different Views And Angles
Metal-Free Design With No Electronic Interference
Good Heat Rejection Capacity
Excellent Shrinkage And Easy To Install

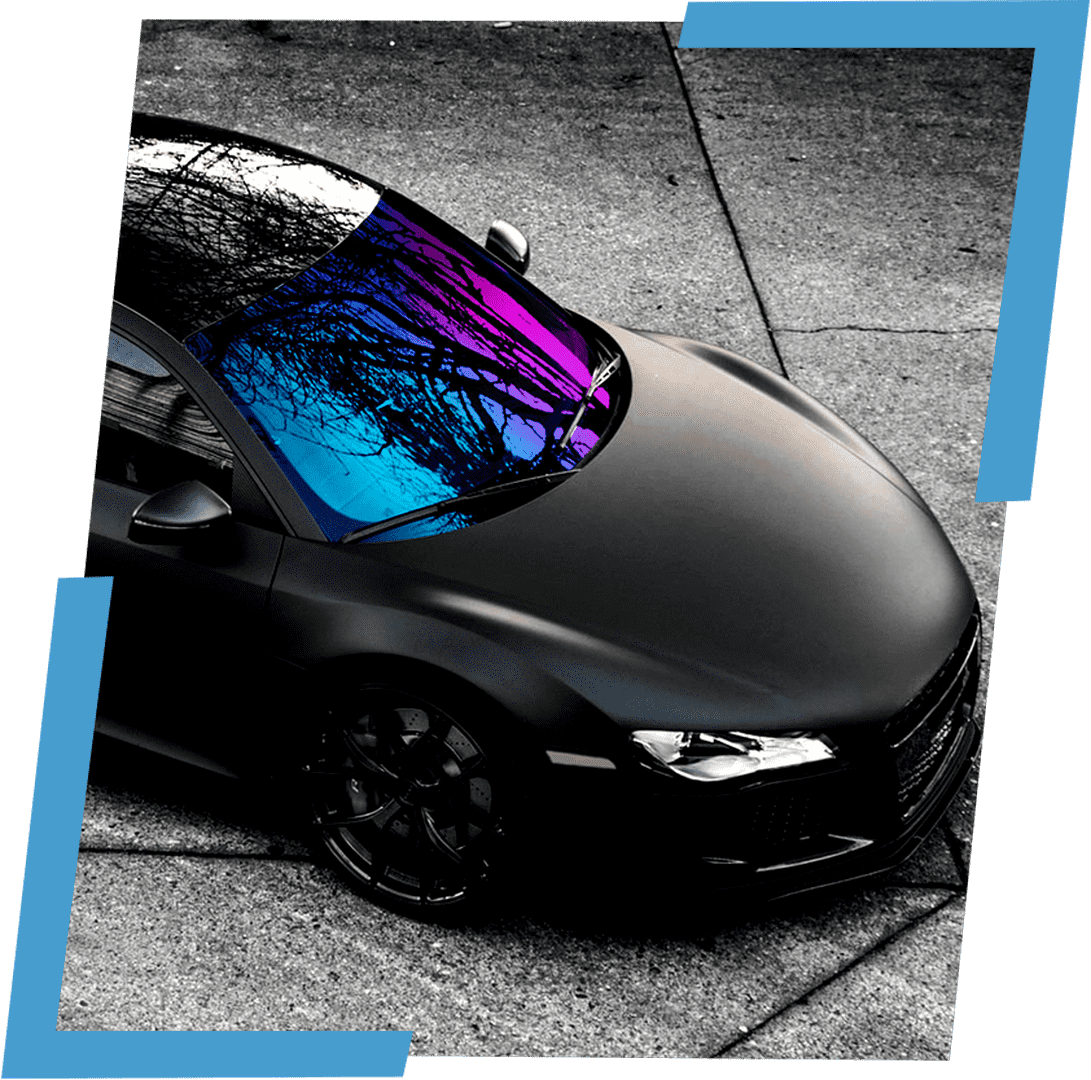

Dichroic Glass Film
Dichroic glass film, which comes in a range of textures and light transmission levels, fills the space with warm color that changes constantly. By guaranteeing direct visibility and permitting superior light transmission, dichroic glass films also offer exceptional privacy.
| Property | Unit | Value | Tolerance | Test Method | |
|---|---|---|---|---|---|
| Total Thickness(without R/F) | μm | Avg 101 | ±2 | Micro Meter | |
| Visible Light Transmittance | % | 23.4 | - | IS09050 | |
| Visible Light Reflectance | Exterior | % | 71.7 | - | IS09050 |
| Interior | % | 74.5 | - | IS09050 | |
| Color in Transmission | - | Pink-Orange-Yellow(straight-angle) | - | Human eye | |
| Color in Reflection | - | Gold-Green-Blue(straight-angle) | - | Human eye | |
| Haze(without R/F) | % | 2.3 | ±0.1 | IS014782 | |
| Adhesive Peel Strength | N/inch | 13.5 | ±2 | ASTM D3330 | |
FEATURES
Changing Colours With Different Views And Angles
Metal-Free Design With No Electronic Interference
Heat Reducing Capacity. Cool effect
Up to 99% UV Protection
Better Durability, Colour Retention And Fade Resistance
Excellecnt Shrinkage And Easy To Install

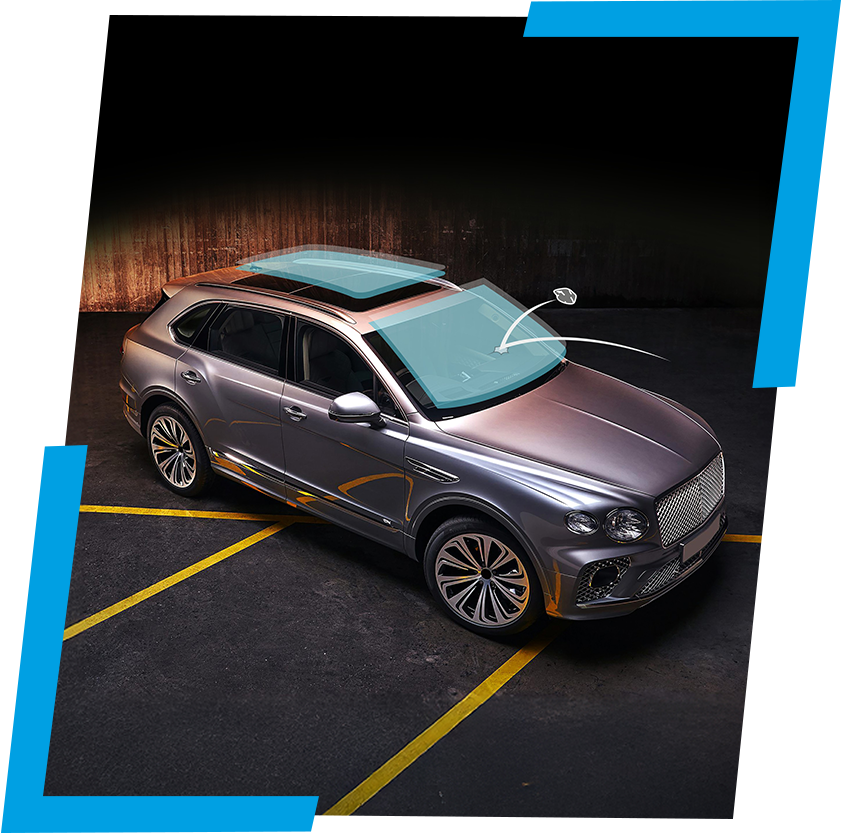

SUNROOF PROTECTION FILM
With Sunroof Protection Film (SPM), you may have a whole new driving experience by keeping your car significantly cooler by both absorbing heat and dramatically accelerating the pace of heat dissipation. Furthermore, SPF provides long-term protection against skin damage and fading and discoloration of your car's interior by blocking 99% of harmful UV rays. Aside from that, SPF's superior thickness increases its safety because it can easily survive the most severe conditions and damage.
| Services | Applicaon,Specs | Warranty | Small,Car | Sedan | SUV/MUV/Luxury | High,End,Luxury |
|---|---|---|---|---|---|---|
| SUNROOF PROTECTION FILM | Top Glass | 8 year | 12500 | 14000 | 15000 | 17000 |
| WINDSHIELD PROTECTION FILM | Front Windshield | 12 Months | 14000 | 15500 | 17000 | 19000 |
SPECIAL FEATURES OF ULTRASHIELDX WINDSHIELD PROTECTION FILM
Durability
You won't ever have to worry about delamination!
Hydrophobic Nature
Water will roll off a surface, leaving it clean.
Self-Healing
Be safe against unforeseen circumstances, whether it's a stone chip or gravel.
Protecting from heat
Protecting you from the heat outside by using solar rejection
Easy to Install
A Smooth Installation Procedure
Unmatched Clarity
It will appear as though there is no hazing at all.
Removal Type Adhesive
Leaves no residue and is as simple to remove as it is to install.
Reduced Glare
Sun visors are no longer necessary
PRICING
| Product details | Package | Rs/Sqft | HATCHBACK | SEDAN | SUV/LUXURY |
|---|---|---|---|---|---|
| Premium IR SERIES Ceramic Film |
|||||
| Full Car | 450 Rs. |
40 | 50 | 55 | |
| 18000 | 22500 | 24750 | |||
| Both side Glass | 450 Rs. |
20 | 20 | 25 | |
| 9000 | 9000 | 11250 | |||
| Front Glass | 450 Rs. |
15 | 15 | 17 | |
| 6750 | 6750 | 7650 | |||
| Front & Rear Glass | 450 Rs. |
25 | 25 | 25 | |
| 11250 | 11250 | 13500 | |||
| IR Sputter |
|||||
| Full Car | 550 Rs. |
40 | 50 | 55 | |
| 22000 | 27500 | 30250 | |||
| Both side Glass | 550 Rs. |
20 | 20 | 25 | |
| 11000 | 11000 | 13750 | |||
| Front Glass | 550 Rs. |
15 | 15 | 17 | |
| 8250 | 8250 | 9350 | |||
| Front & Rear Glass | 550 Rs. |
25 | 25 | 30 | |
| 13750 | 13750 | 16500 | |||
| Chameleon Film |
|||||
| Full Car | 400 Rs. |
40 | 50 | 55 | |
| 16000 | 20000 | 22000 | |||
| Both side Glass | 400 Rs. |
20 | 20 | 25 | |
| 8000 | 8000 | 10000 | |||
| Front Glass | 400 Rs. |
15 | 15 | 17 | |
| 6000 | 6000 | 6800 | |||
| Front & Rear Glass | 400 Rs. |
25 | 25 | 30 | |
| 10000 | 10000 | 12000 | |||
| Dichroic Film |
|||||
| Full Car | 450 Rs. |
40 | 50 | 55 | |
| 18000 | 22500 | 24750 | |||
| Both side Glass | 450 Rs. |
20 | 20 | 25 | |
| 9000 | 9000 | 11250 | |||
| Front Glass | 450 Rs. |
15 | 15 | 17 | |
| 6750 | 6750 | 7650 | |||
| Front & Rear Glass | 450 Rs. |
25 | 25 | 30 | |
| 11250 | 11250 | 13500 |
BENEFITS
Naturally Cool Interiors
A softer, more organic tone improves the entire appearance.
Defense Against the Sun's Dangerous Rays
Reduces fuel consumption because there will be less need for the air conditioner
Keeps the upholstery from fading and becoming discolored.
10-year product guarantee, no need of discolouration and delamination
Reduces mobile and GPS interference
Enhanced security through resistance to glass shattering
